ULTIMA Grune Fenster 【Display】



    * No handling of plants, exhibits hanging on wire, planters, soil, irrigation, after-sales maintenance, etc.





     Features of ULTIMA Grune Fenster 【Display】

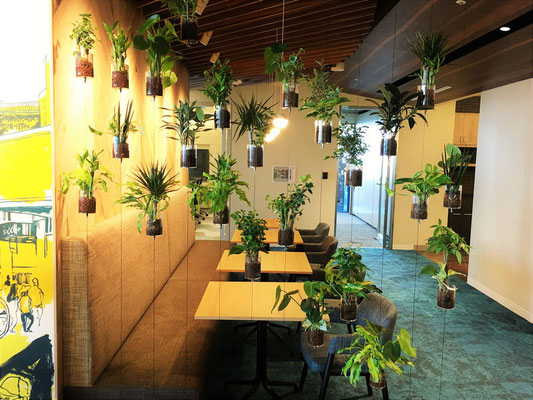

    Before

    After


     Features
    • Layout can be easily changed
      • Hanging items can be installed by passing them through the wire.
    •
      • You can move the hanging item down by pulling down the part attached to the bottom of the hanging item, or push it up when you want to move it up.
    • The wire is removable, so exhibits can be easily replaced.
    • Wires can be freely repositioned to increase or decrease the number of exhibits.



     Important：Preparation 【Display】



    ＊It is a prerequisite that the installation point (top end bottom end) can be screwed or drilled.



    Installation site condition

     Can be screwed or drilled at the installation site

    Standard dimensions

     Width within 2,000mm × Height no limitation

    ＊If the width is more than 2,000mm, it is possible to increase the number of rails.


     ① Measure the height of the installation location!　
    • Measure the ceiling height of the desired installation location using a tape measure.
    • Since the ceiling height may vary depending on the location, be sure to measure the ceiling height of the desired installation location.
    • Measure the ceiling vertically and straight to the ceiling, and take detailed measurements in millimeters.
     ② Please give us the wide dimension.
    •  If you need more than 2,000 mm, we can increase the number of rails.
     ③ Please inform us of the number of wire set to be installed plus the measured height.



     Products_specifications





     Rail





    Product

    		Rail UIA-PR S Rail UIA-PR B End Caps (both ends)
    Color Silver  Bronze Black
    Material Aluminum extrusion molding Natural rubber
    Size L=900mm×2sets × D10mm × H23mm -



     Display Wire Rope Set







    		Display Wire Rope Set L=1,000 【Indoor】

    Display Wire Rope Set L=1,500 【Indoor】

    Display Wire Rope Set L=2,000 【Indoor】

    Display Wire Rope Set L=2,500 【Indoor】

    Display Wire Rope Set L=3,000 【Indoor】

    Display Wire Rope Set L=3,500 【Indoor】

    Wire Length L=～1,000mm L=1,000mm ～ 1,500mm L=1,501mm ～ 2,000mm L=2,001mm ～ 2,500mm L=2,501mm ～ 3,000mm L=3,001mm ～ 3,500mm
    Material Wire：stainless 304、　Metal：stainless、　Grip：brass
    Included Spring hook with gripper
    Note Wire rope size：φ1.5

    ＊ Delivery dimensions are ＋200mm of the height dimension.

    ＊ Example: L=2,400mm (height dimension) ⇒ L=2,600mm (delivery dimension) ⇒ Display Wire Rope Set L=3,000

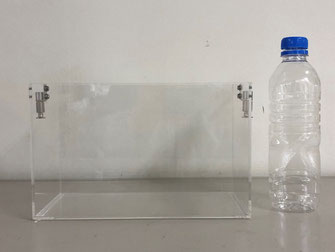

     Grips for exhibits



    ＊At least one grip for the exhibit must be installed by drilling holes on both ends of the exhibit to be hung..

    ＊Drill holes in the exhibit and attach the grips. Screws are not included because the thickness and material of the exhibits are unknown.




    Material Wire：stainless 304、　Metal：stainless、　Grip：brass

    Included

    		Spring hook with gripper

    Note

    		Wire rope size：φ1.5



     Example of reference

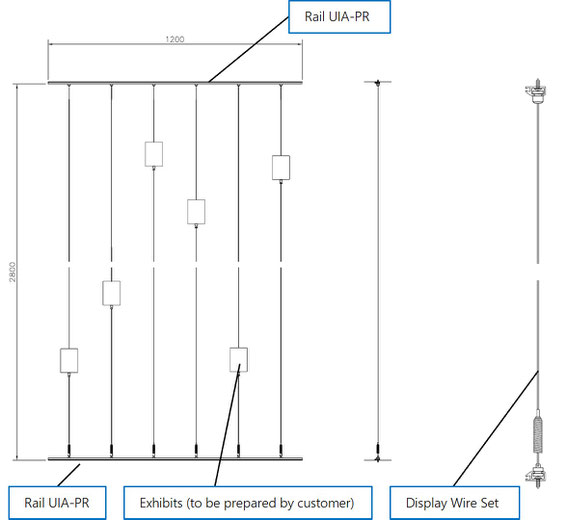

     Example：W1,200 × H2,800　＊wire rope spacing@200
    • Display Wire Rope Set L=3,000：6 sets
    • Rail UIA-PR (L=900×2)：2 sets
     Note
    • The rail will be a fixed length L=900, but it can also be cut on site.
    • The screw pitch for rail mounting is 3 places for L=900.
    • The pitch of the wire set is optional.

    Instruction (PDF)
